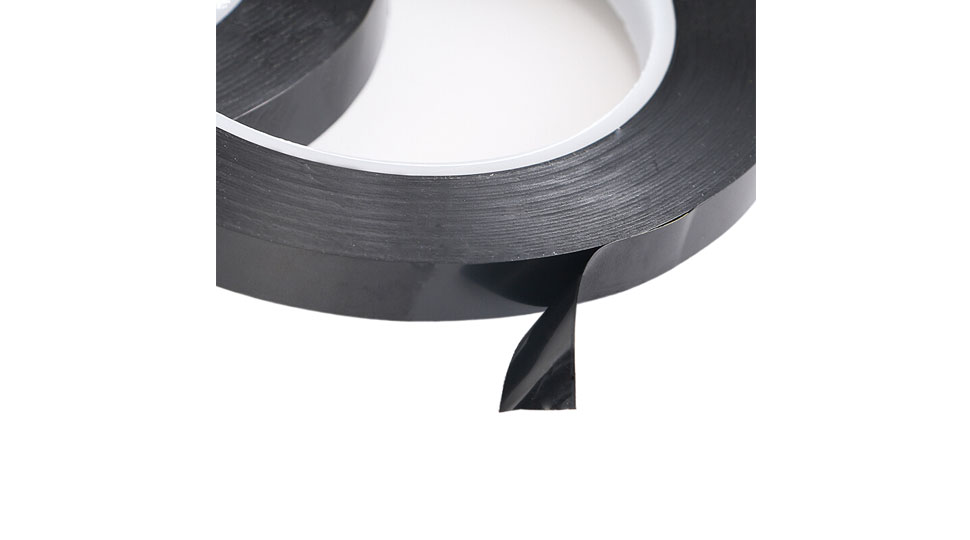

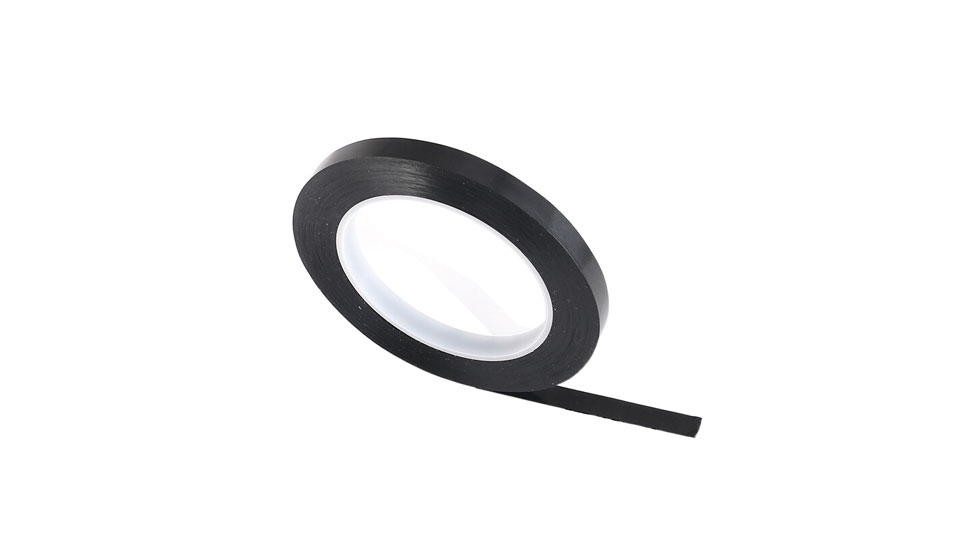

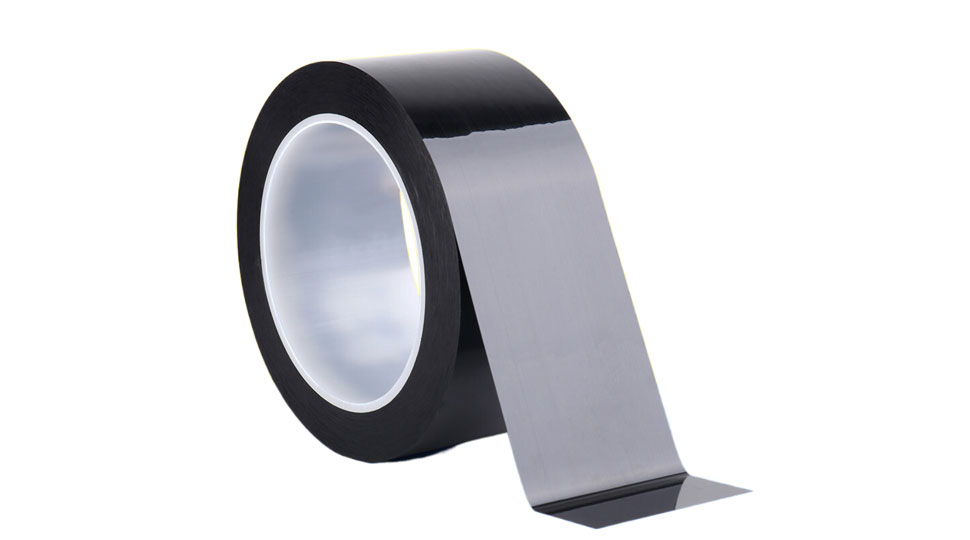

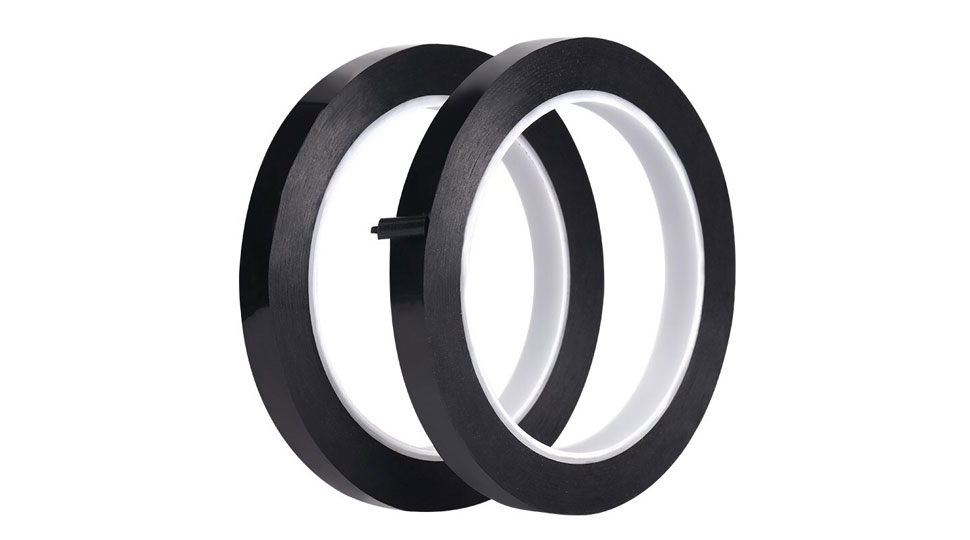

Black Polyester Tape

  • black polyester tape
  • black polyester tape
  • black polyester tape
  • black polyester tape

Black polyester tape also called as a black shading tape, Black polyester tape is made of polyester film as the base material and coated with high temperature resistant silicone gel. Black polyester tape is insulated and high temperature resistant, with a transparent release film is optional. Black polyester tape thickness and width is customizable and can be processed into various shapes. Black polyester tape does not transmit light and does not warp. Black polyester tape is a shading tape for the professional optoelectronics' industry.

Black Polyester Tape-TDS

Color: Black

Backing: PET

Adhesive: Silicone/acrylic

Thickness: 0.05 0.06 0.08 (mm)

Elongation: 30%

Temperature: 230℃ 30mins

Withstand Voltage: 4,000 (Volts)

Length: 0-500m(customized)

Width: 0-500mm (customized)

Core size: 25.4mm/38mm/76mm


Application Of Black Polyester Tape

  • LCD backlight module fixed,

  • Mobile phone lens shading and fixing;

  • The LCD frame is shaded from the side,

  • The edge of the instrument part is shading and fixed when it is powered up.


Features Of Black Polyester Tape

  • Shading and opaque

  • High temperature resistance without residual glue

  • Strong toughness and not easy to break

  • High-adhesive paste does not warp edges

  • Environmental protection, non-fading, non-conductive insulation
