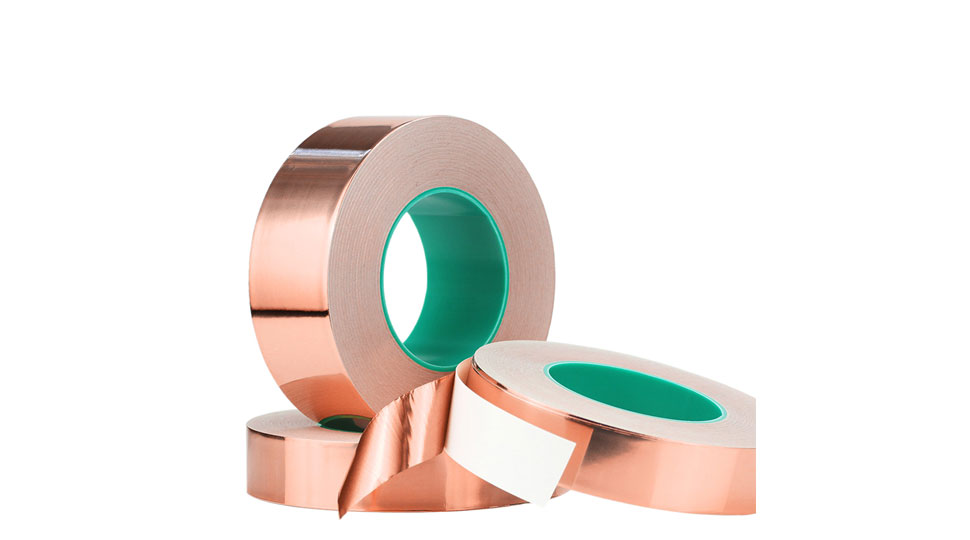

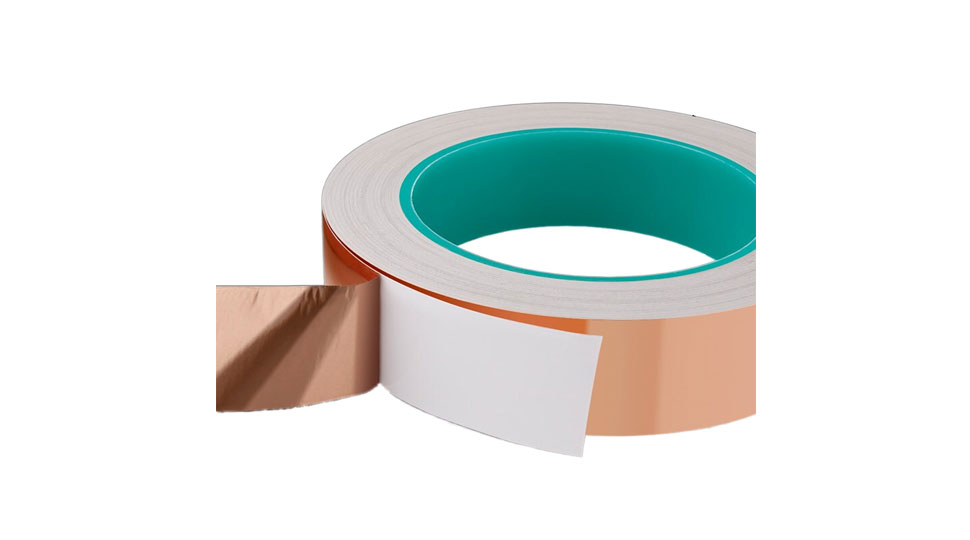

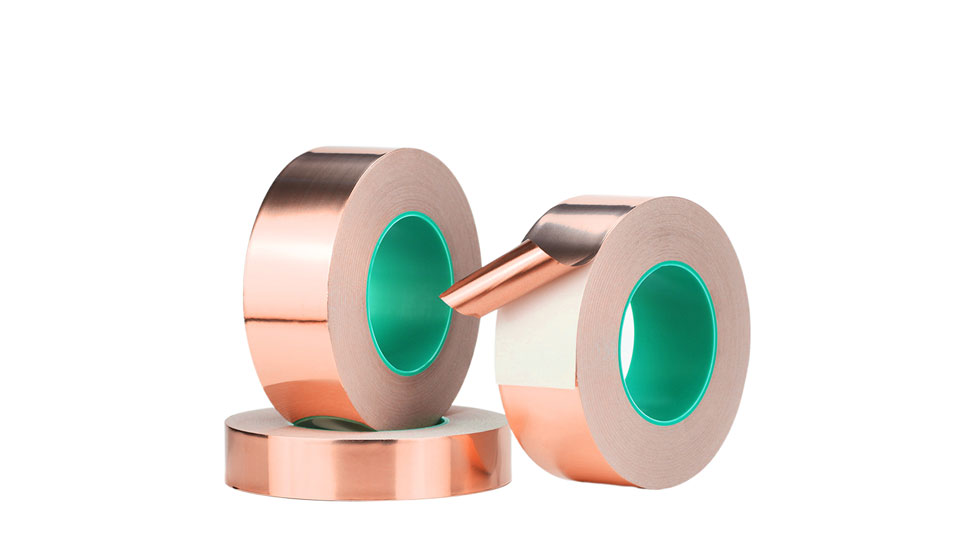

Self Adhesive Copper Tape
Self-adhesive copper tape, also called self adhesive copper strip, has low surface oxygen characteristics and can be attached to various substrates, such as metals, insulating materials, etc., and has a wide temperature range. The self adhesive copper tape is mainly used in electromagnetic shielding and anti-static, the conductive copper foil is placed on the substrate surface, combined with the metal base material, has excellent conductivity, and provides electromagnetic shielding effect. Self adhesive copper tape can be divided into: double-conducting copper foil tape, double-sided double-conducting copper foil tape, etc.
Self-adhesive copper tape produced by Hope light is available in various thicknesses: 0.018 mm; 0.025 mm; 0.03 mm; 0.05 mm; 0.06 mm; 0.075 mm; 0.08 mm; 0.1 mm; 0.13 mm; 0.15 mm; 0.2 mm, etc. Width: 3 mm-600 mm can be customized.
Hope light is a professional manufacturer of self adhesive copper strip and copper tape supplier. We have different copper tape thickness for you to choose. If you want to know more about our products and copper tape uses, welcome to contact us.
Self Adhesive Copper Tape-TDS
Material：CU 99.98%
Carrier thickness：0.018mm-0.2mm
Adhesive thickness：0.015mm-0.04mm
Adhesive：conductive acrylic
retention force：1.5～1.3ｋｇ／25ｍｍ
Heat Resistance:－10℃---120℃
Breaking strength:4.5～4.8ｋｇ／ｍｍ
Elongation:7%
Self Adhesive Copper Tape-Application
Computer signal line: Design and test circuits quickly on boards or other surfaces by using self adhesive copper tape to create conductive traces. This is particularly useful for stripline circuits commonly used in high-frequency applications.
Harness Stripping: If a harness wire's insulation is nicked or damaged, self adhesive copper strip can be used to provide temporary or permanent repair by patching the exposed area. Ensure the repair is properly insulated for safety.
Computer Cable: Self adhesive copper foil tape can be wrapped around sensitive computer cables to act as an EMI shield, protecting them from electromagnetic interference. This can be helpful for improving signal quality and preventing data errors.
Transformer: Copper tape can be used to create grounding paths on transformers, helping to dissipate heat and minimize electrical noise.
LED Light Belt: The self adhesive copper foil tape is used to adhere LED strips to various surfaces, allowing for creative and flexible lighting designs. The conductive adhesive ensures proper electrical connection for the LEDs to function.
Features Of Self Adhesive Copper Foil Tape
Double-sided conductivity is good
Made of high-quality glue and copper materials, both sides have good conductivity
Super temperature resistance
High temperature resistance up to 120℃, suitable for a variety of harsh environments, often used for repairing mobile phones and electrical appliances
Good adhesion
Strong and long-lasting adhesion, not easy to break, easy to peel, no residual
Strong sealing and electromagnetic shielding
Self adhesive copper tape has the characteristics of anti-radiation, anti-static, anti-aging, can be torn by hand, easy to use
Why Choose Hopelight Self Adhesive Copper Foil Tape
High-Quality Materials: Hopelight uses premium grade, electrolytic copper foil in our self adhesive copper strip, ensuring excellent conductivity and low resistance. This translates to better performance in applications like EMI shielding, grounding, and heat dissipation.
Variety of Options: Hopelight offers a wide variety of self-adhesive copper foil tape to suit different needs. This includes various copper tape thickness, widths, and lengths, as well as double-sided conductive tape for more complex applications.
Strong Adhesive: The acrylic adhesive used in Hopelight's self adhesive copper foil tape is strong and durable, adhering well to various surfaces, even irregular ones. This ensures the tape stays in place and performs reliably over time.
Customer Service: Hopelight provides comprehensive datasheets and application guides for each self adhesive copper foil variation, empowering informed decision-making. We provides custom solutions for you, for unique project requirements, Hopelight offers the ability to tailor tape properties like thickness, adhesive type, and size to specific needs.
Competitive Pricing: Compared to competitors offering similar quality, Hopelight's self adhesive copper tape is often priced competitively or even more affordably. This makes them a budget-friendly choice without compromising on performance.
