Copper Tape

Copper tape, also called copper foil shielding tape, is made of copper with a purity higher than 99.95% as the base material and coated with acrylic adhesive. The copper sticky tape is divided into single conductive and double conductive: single conductive coated with non-conductive glue, and double sided copper tape coated with high-quality conductive glue, and also embossing, electrolysis. There are many options of the adhesive copper tape such as nickel plating to eliminate electromagnetic interference (EMI), strong adhesion, good electrical conductivity, strong sealing performance, easy to fit, anti-aging. The copper foil shielding tape can be used in twists and turns, and can be cut in various specifications.

Hopelight is a professional China copper tape manufacturer and supplier, welcome to buy copper tape at Hopelight.

Application Of Adhesive Copper Foil Tape

  • Punch type

  • LCD Monitor

  • Phone Repair

  • Electronic Appliance Digital


Copper Tape-Technical Datasheet

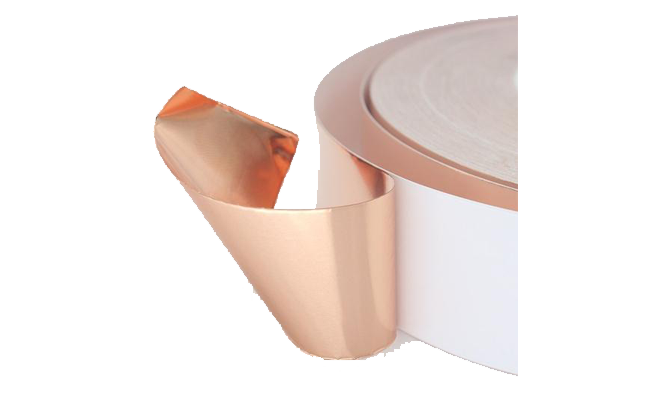

  • SS-single-sided conductive copper foil

    single-sided coated with non-conductive acrylic adhesive

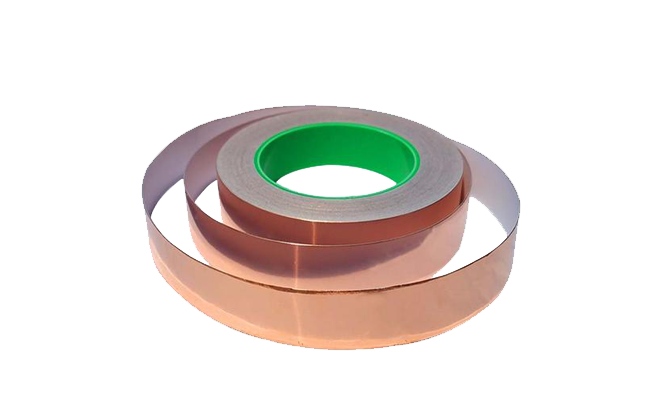

  • SSC-double-sided conductive copper foil

    single-sided coated with conductive acrylic adhesive

  • DD-double-sided self-adhesive copper foil

    double-sided coated with non-conductive acrylic adhesive

  • DDC-double-sided conductive copper foil

    double-sided coated with acrylic conductive adhesive


Model

Total thickness(mm)

Adhesion

(gf/25c/mm)

Resistivity of adhesive surface (Ω/inch2)

Shielding effectiveness
db (10MHz-3GHz)

Copper thermal

conductivity (W/M.k)

Heat resistance (℃)

SSC

0.01-0.3

≧800

≦0.05

≧65

380

-20~150

DDC

0.01-0.2

≧800

≦0.05

≧65

380

-20~150

SS

0.01-0.3

≧800

/

≧65

380

-20~150

DD

0.01-0.2

≧800

/

≧65

380

-20~150

Copper Tape-Feature

  • 01

    Eliminate electromagnetic interference (EMI), isolate the harm of electromagnetic waves to the human body, and avoid voltage or current affecting functions,


  • 02

    Strong adhesion, good electrical conductivity, can be easily wound and attached to the wire, and can be cut into various specifications according to customer requirements.


  • 03

    It has a good effect on electrostatic discharge after grounding


Packing Information Of Copper Metal Tape

Die Cutting tape: first PE bag then Bubble film to protect

Jumbo roll: plastic film + air bubble film + Corrugated cardboard

Cutting roll: each roll has liner to isolate + PE bag + Bubble film

Outer packing:

Cut roll: hard carton

Jumbo roll: Wooden box


FAQs of Copper Tape

  • How long is the lead time of your copper tape?

    Sample needs 1-5 days to ready


  • What is your terms of payment?

    30% T/T deposit, 70% balance by T/T before shipment.


  • Why choose Hopelight copper tape?

    We have ten years produce and export experience for heat resistant tape products. Our factory has professional technical staff and after sale service for all the products.


  • What information do you need to quote?

    Thickness, length, width, color, quantity and material.


Do You Need A Consultation?

Holpelight provide not only heat resistant tapes, but also a trust and affirmation. We can share our technology and capabilities to make your design more perfect.
