More Than Conductive: 5 Key Roles of Copper Foil Tape in EMI/RFI Shielding

You will find Copper Foil Tape offers more than just electrical conductivity. It stands out for its flexibility, resistance to corrosion, and ability to handle temperature swings. You can use it for precise applications because it is thin, easy to cut, and fits curved surfaces.

• Excellent electrical conductivity

• Flexible and easy to apply

• Resists moisture and corrosion

• Handles temperature changes

The demand for reliable EMI/RFI shielding has grown with new technologies like 5G and electric vehicles. You can rely on copper foil tape for both professional and hobby projects, knowing that it protects sensitive components and improves device performance.

Key Takeaways

• Copper foil tape provides excellent electrical conductivity, making it ideal for connecting circuit parts and maintaining strong signal flow.

• It offers reliable shielding against electromagnetic interference (EMI) and radio frequency interference (RFI), ensuring your devices operate smoothly.

• The tape's flexibility allows for easy application on curved surfaces, making it perfect for custom projects and tight spaces.

• Using copper foil tape can save you money in the long run by reducing the need for repairs and replacements of electronic devices.

• Copper foil tape is versatile for both professional and DIY projects, from shielding electronics to creative arts and crafts.

Device Shielding

Signal Protection

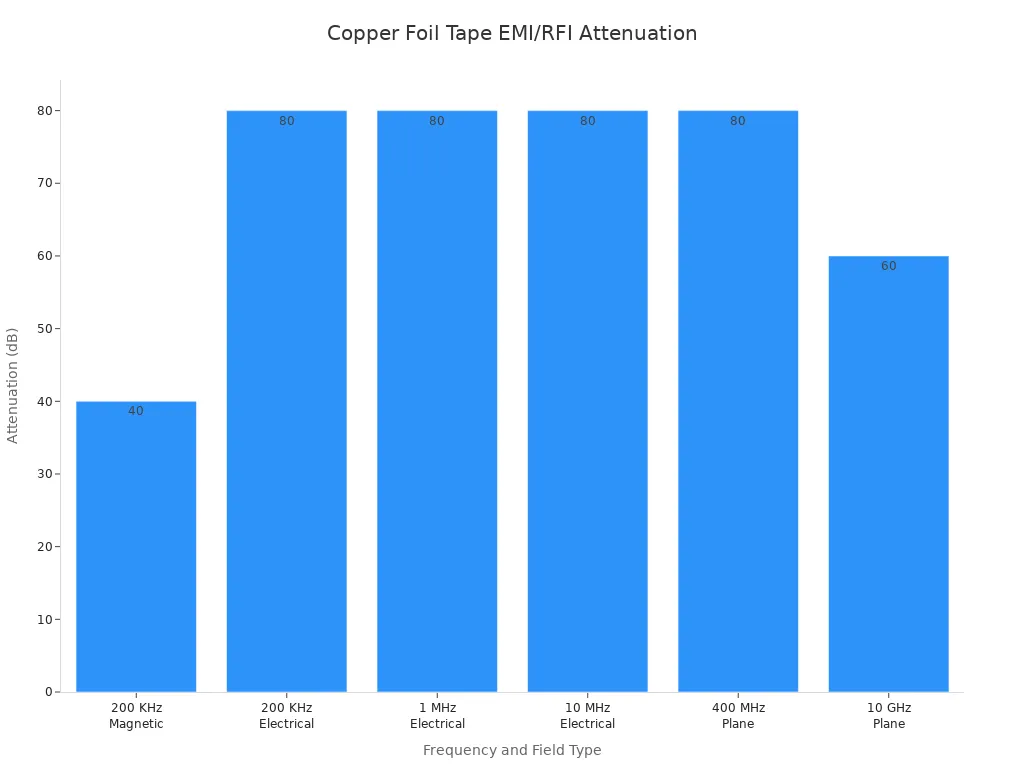

You rely on many electronic devices every day, from smartphones to laptops. These devices need strong protection against electromagnetic interference (EMI) and radio frequency interference (RFI). Copper Foil Tape helps shield sensitive parts inside your electronics. It creates a barrier that blocks unwanted signals and keeps your device working smoothly.

• Copper Foil Tape has high electrical conductivity. You can use it to connect different parts of a circuit and maintain strong signal flow.

• It provides excellent shielding against EMI. This means your device will not pick up stray signals from nearby electronics.

• You keep your data safe and your device running at top speed by using Copper Foil Tape for signal protection.

• The tape helps prevent signal degradation. Your music sounds clear, your calls stay connected, and your screens show sharp images.

Tip: You can use Copper Foil Tape in gaming consoles, routers, and audio equipment to reduce noise and improve performance.

Reliability Boost

You want your electronics to last a long time. Copper Foil Tape gives you that extra layer of reliability. It stands up to high temperatures and humidity, so your devices stay protected even in tough conditions.

• The tape resists moisture, which keeps the adhesive strong and prevents peeling.

• It does not corrode easily, so you get steady performance over time.

• You can use Copper Foil Tape in industrial machines, medical devices, and home appliances for long-term shielding.

• The tape’s flexibility lets you cover curved surfaces and tight spaces, making it perfect for custom applications.

You save money in the long run because your devices need fewer repairs and replacements. Manufacturers also choose Copper Foil Tape for large-scale production because it offers cost efficiency and strong protection.

Circuit Board Safety

Component Isolation

You need to keep each part of your circuit board safe from unwanted signals. When electromagnetic interference (EMI) or radio frequency interference (RFI) enters your circuit, it can cause errors or even damage. This risk grows in critical fields like aviation and healthcare, where a single mistake can have serious results. For example:

• EMI can disrupt the performance of electronic devices in airplanes, affecting communication and navigation.

• In hospitals, EMI can interfere with pacemakers or MRI machines, leading to dangerous situations.

• Sensitive electronics need protection to work correctly and safely.

You can use copper foil tape to shield these components. It absorbs or reflects harmful electromagnetic waves, creating a safe space for each part of your circuit. You get a versatile tool that fits even on curved surfaces, thanks to its flexibility. Many engineers trust copper foil tape because it offers high conductivity and strong shielding, which are crucial for protecting your devices.

The production and disposal of EMI shielding materials, including copper foil tape, raise significant environmental concerns. These include energy consumption, carbon emissions, and the generation of electronic waste. Additionally, hazardous chemicals may be released during production, and improper disposal can lead to toxic substances leaching into the environment. The rapid turnover of consumer electronics exacerbates the electronic waste issue, as these materials often end up in landfills, posing further risks.

Noise Reduction

You want your circuit boards to send clear signals without interference. High-frequency noise can cause data loss or signal errors. Copper foil tape helps you block out this noise and keep your signals strong. Here is how it works:

• Copper foil tape blocks both EMI and RFI at the bond line, which reduces circuit noise.

• It isolates harmful electromagnetic waves, which is essential for keeping your data safe.

• Devices maintain signal integrity and avoid disruptions from outside electrical noise.

You can rely on copper foil tape to keep your circuit boards safe and your devices running smoothly.

Cable Shielding

Data Integrity

You want your data to travel safely through cables, especially in environments full of electronic noise. Copper foil tape helps you achieve this by creating a shield around your cables. This shield blocks unwanted signals and keeps your data clear and accurate. When you wrap cables with copper foil tape, you protect them from electromagnetic interference (EMI) and radio frequency interference (RFI). This is important for both short and long cables.

• The conductive adhesive in copper foil tape allows for strong EMI/RFI shielding.

• You can apply the tape easily, making it a practical choice for cable wrapping and quick repairs.

• The tape provides electrical continuity, which is essential for maintaining the performance of shielded environments.

• Copper foil tape acts as a barrier against EMI, preserving signal quality during long-distance transmission.

You can use this tape in audio cables, USB cords, and network wires. It helps you avoid data loss and keeps your devices running smoothly. If you work with sensitive equipment, you will notice fewer errors and better performance.

Note: Always make sure the tape covers the cable completely. Gaps or poor grounding can reduce the effectiveness of the shield.

External Interference

You face many sources of interference in modern homes and offices. Wireless routers, microwaves, and even fluorescent lights can disrupt your cables. Copper foil tape gives you near-100% coverage, making it highly effective against high-frequency EMI. It is lighter and thinner than braided copper wire shielding, so you can use it in tight spaces or on flexible cables.

• You get strong protection from high-frequency interference.

• The tape is cost-efficient and easy to handle.

• It works best for high-frequency noise, but braided copper is better for low-frequency interference.

However, copper foil tape can be fragile. If you bend it too much or handle it roughly, the shield may break. This can reduce its effectiveness, especially in high-frequency applications. Always check for gaps and make sure the tape stays in contact with the cable for the best results.

Grounding & ESD

Safe Discharge

You need to protect sensitive electronics from static electricity. Static can build up on surfaces and cause sudden discharges. These discharges may damage circuits or erase important data. Copper foil tape helps you create a safe path for static to leave your devices. You can use it to connect different parts of a circuit, acting as a ground wire during installation. This tape also works well for cable wrapping and surface contact, even with materials like aluminum or plastic.

Grounding is crucial for effective ESD control, ensuring that all conductive materials and personnel are connected to a common ground to maintain the same electrical potential.

You can follow these steps to install copper foil tape for grounding:

1. Clean the area to remove dust or oil.

2. Mark the path for the ground grid.

3. Remove the liner and press the tape down firmly.

Copper foil tape creates a conductive path that lets static electricity flow safely to the ground. This protects your electronic components from damage and keeps your equipment working well.

Hazard Prevention

You want your electronics to last and stay safe. Corrosion can weaken grounding systems over time. Copper foil tape uses tinned copper, which resists corrosion and keeps the connection strong. This makes it ideal for long-term grounding in places where moisture or chemicals might be present.

You should also know that industry standards like ANSI/ESD S6.1 and ANSI/ESD S20.20 guide how to use copper foil tape for ESD control. These standards help you make sure your grounding system works well and keeps your electronics safe from static hazards.

Copper Foil Tape in DIY

Creative Uses

You can explore many creative projects with copper foil tape. This tape works well for both electronics and art. You might use it to shield guitar cavities, repair wiring boards, or add metallic accents to lamps and cupboards. Artists often use it for stained glass, jewelry, and even electroplating masks. You can also wrap cables or seam shielded rooms to block unwanted signals.

Here are some popular DIY applications:

Tip: You can use copper foil tape for both technical and decorative projects. It is easy to cut and shape, so you can fit it to almost any surface.

Custom Solutions

You can solve unique problems with copper foil tape. Many makers use it for quick fixes and prototypes. The tape helps you save time and money because you can apply it fast and cut it to any shape. You might use it to drain static charges, wrap cables, or shield between metal parts. Some people use die-cutting to make custom shapes for special projects.

• You can use the tape for prototyping and troubleshooting.

• It helps eliminate static build-up, which protects your devices.

• You can customize the tape to fit odd shapes or tight spaces.

• The tape works well for seaming shielded rooms or wrapping cables.

When you compare DIY projects to professional settings, you see some differences:

You can rely on copper foil tape for both simple and complex DIY solutions. It gives you the freedom to create, repair, and protect your projects.

You can count on Copper Foil Tape for more than just conductivity. Industry experts highlight five key roles:

1. EMI shielding for electronic devices

2. Circuit board shielding

3. Cable and wire shielding

4. Grounding and ESD protection

5. Arts, crafts, and DIY projects

• You gain grounding of static charge, mechanical protection, and cost-effective shielding.

• You can use it for both professional and DIY projects, from shielded rooms to creative crafts.

Explore new ways to protect your electronics and unleash your creativity with this versatile tape.

FAQ

What makes copper foil tape better than aluminum tape for EMI shielding?

You get higher electrical conductivity with copper foil tape. Copper also resists corrosion better. This means you can trust it for long-term EMI and RFI protection in electronics.

Can you solder copper foil tape easily?

Yes, you can solder copper foil tape. The tape’s surface accepts solder well. This helps you create strong electrical connections for repairs or custom projects.

Does copper foil tape work outdoors?

You can use copper foil tape outdoors. It resists moisture and temperature changes. For best results, choose tape with weatherproof adhesive.

How do you store copper foil tape?

Store copper foil tape in a cool, dry place. Keep it away from direct sunlight. You protect the adhesive and prevent the tape from drying out.

What are some creative uses for copper foil tape?

• Shield guitar cavities from noise

• Add metallic accents to crafts

• Repair small electronics

• Create custom circuit paths

• Block signals in DIY Faraday cages
